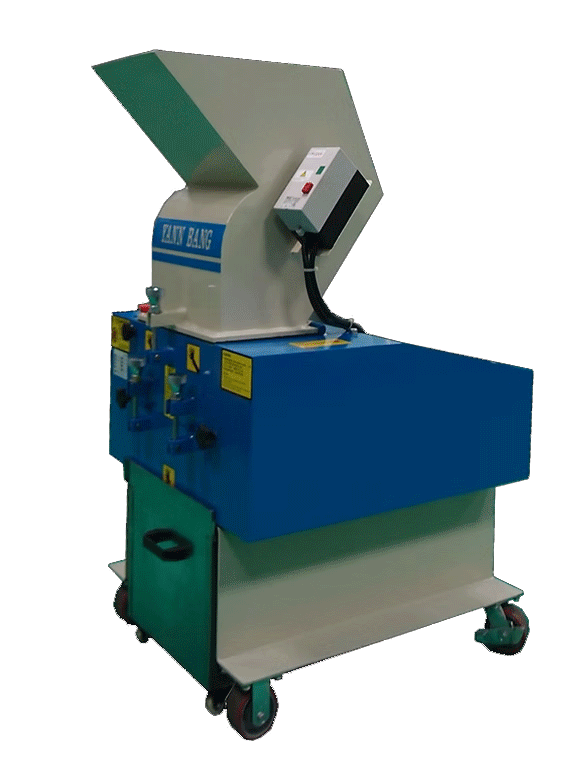

Instant Crusher (YBCS)

YANN BANG  plastic crusher is perfect to locate next to a molding machine to recycle immediately. It's also good to granulate long and thick material.

FEATURES

  • An instant recycling system can help you to cost down by recycling the sprues, waste material or defective products. YANN BANG Instant Crusher is also good to granulate long and thick material.

  • The unique safety protection device which is obtained China patent stop completely when abnormal happens. This series is perfect to locate next to a molding machine to recycle immediately.

Instant Crusher

SPECIFICATION

Instant Crusher
Instant Crusher

REMARKS



  • The material of blades is SKD-11 or SKH-2.

  • We reserve the right to change specifications without prior notice.

pdf
QR code

STANDARD ACCESSORIES

Blades SKH-2

01

Blades SKH-2

FAQ

  • Reason:

    1. Worn blades.

    2. Excessive blade clearance.

    3. Incorrect blade rotation direction.

    4. Excessive rotation speed.

    5. Change in material properties.

    ​

    Ans.:

    1. Resharpen the blades.

    2. Adjust blade gap to an appropriate distance.

    3. Correct the rotation direction.

    4. Replace the pulley to reduce rotation speed.

    5. Adjust granulating parameters according to different materials.

  • Reason:

    1. High feed material temperature.

    2. Overfilled storage bin causing discharge blockage.

    3. Damaged bearings.

    ​

    Ans.:

    1. Allow material to cool down before feeding.

    2. Clear the accumulated material from the storage bin.

    3. Replace the bearings.

  • Reason:

    1. Worn screen mesh.

    2. Loose screen frame.

    3. Screen mesh size too large.

    ​

    Ans.:

    1. Replace the screen.

    2. Tighten the screen frame.

    3. Replace with a smaller screen mesh.

  • Reason:

    1. Variations in material specific gravity.

    2. Worn blades.

    3. Screen mesh size too small.

    4. Inappropriate machine model selection.

    ​

    Ans.:

    1. Account for different specific gravities of materials.

    2. Resharpen the blades.

    3. Replace with a suitable screen mesh.

    4. Switch to a suitable machine model.

  • Reason:

    1. Worn blades.

    2. Friction between rotating and stationary blades.

    3. Loose blades.

    4. Foreign objects fallen into the granulating chamber.

    5. Insufficient voltage or phase loss.

    6. Damaged bearings.

    ​

    Ans.:

    1. Resharpen the blades.

    2. Adjust blade gap to an appropriate distance.

    3. Tighten the blades.

    4. Remove foreign objects and clear contaminated Regrind.

    5. Check power supply.

    6. Replace the bearings.

  • Reason:

    1. Oversized feed material.

    2. Loose machine components.

    3. Uneven ground surface, wheels not fully grounded.

    ​

    Ans.:

    1. Select appropriate feed material size.

    2. Inspect and locate the source of the noise/vibration.

    3. Ensure all four casters/wheels are evenly contacting the ground.

  • Reason:

    1. Power supply interruption.

    2. Overloading due to improper operation, triggering overload protection.

    3. Hopper not properly locked/latched.

    4. Damaged magnetic contactor.

    ​

    Ans.:

    1. Check power supply.

    2. Clear the granulating chamber, reset the protection trip, and restart.

    3. Check safety interlock switch engagement.

    4. Replace the magnetic contactor.
