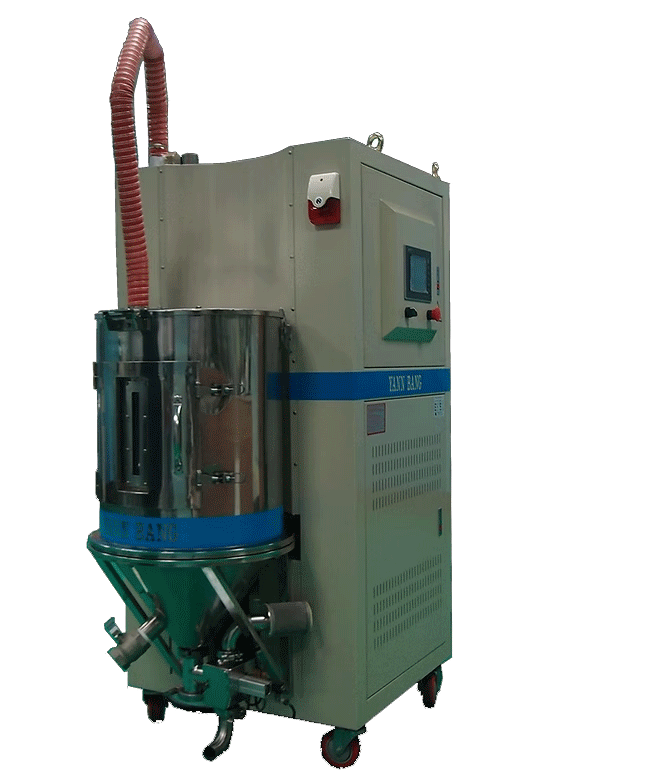

Multi-Function Dehumidifying Dryer

Multi-Function Dehumidifying Dryer
( DHC-NA )

Our All-in-One or 3-in-1 honeycomb dehumidifiers are with stainless hopper dryers and vacumm loaders  to offer the best solution to plastc drying, dehumidification and conveying.

FEATURES

  • Save money. Three-in-one design can dry, dehumidify, and automatically convey resins.

  • Low noise to promote the quality of environment.

  • Easy to move. The unit with wheels can move anywhere for your need.

  • Designed structure to save more space for use.

  • Combine drying and dehumidification system to save energy and lower carbon emission.

  • Air filter and pipe cleaning device are easy to take out without any tool to save your time.

  • Hopper Dryer made by stainless steel with clean door for easy maintenance.

  • DHC-NA   TAIWAN PAT. : 226845 & M300795    CHINA PAT. : 02272700.0

Multi-Function Dehumidifying Dryer

SPECIFICATION

Multi-Function Dehumidifying Dryer
Multi-Function Dehumidifying Dryer

REMARKS



  • To choose the suitable model of dryers and loaders will be changed by resin grade, drying condition and other factors.

  • Customized specifications are available upon your early inquiry.

  • If your Dehumidifying Dryer works with more than one suction hopper, suggest to upgrade one level of your blower .

  • If your dehumidifying dryer apply for two more molding machines, we suggest you to increase the dehumidifying dryer’s size or enhance the fan flow of fan motor.

  • We reserve the right to change the technical data without prior notice.

STANDARD ACCESSORIES

  • Intelligent P.I.D. digital temperature controller

  • Temp. display of outlet air

  • Water shortage alarm

  • Motor reverse protector

  • Motor overload protector

  • Overheat preventer

  • No-circuit switch

OPTION

Patented Energy-Efficient Device

01

Patented Energy-Efficient Device

The advanced technology recycles internal heat and faster heating. The temperature inside hopper increases quickly for better drying and shorten above 30% of drying hour. Simultaneously the unit can separate dust and oil for better quality. An energy-efficient device can save energy and improve working environment for you.

02

Oil Eliminator

  • YANN BANG oil eliminator replaces the generic filter which can’t eliminate the hot gas. Using this patented (Taiwan M327784) oil eliminator can prevent the hot oil gas entering into the desiccant dryer and prolong life of honeycomb wheel and desiccative.

  • Other options: Dew-point meter

  • Refractory silicone pipe accessories

Oil Eliminator

FAQ

Hopper Dryer

    1. Check if there is any air leakage of unit.

    2. Check if Fan motor is running in correct direction and if the Iron net is stocked.

    3. Check if Heater and thermocouple is ok, and use Device to get Electrical current value.

    4. Check if there is resin gathering around Right side of unit and inside dust collector chamber.

    5. Check if Contactors, temperature controllers, EGO, and Thermocouple is OK.

    1. 1-1 Check Air volume of Fan Motor from its 90 degrees Outlet port.
      1-2 Check if Electrical current and resistance of Heater is Normal.
      1-3 Check if Both Temperature Indicators, Up and down, share Same value. And also check if Frequency of ON/OFF is Normal.
      1-4 Check if there is Spreader Cone inside Drying Chamber of unit.

    2. Hopper Dryer is NOT Fulfilled with Material.

    3. Check if there is any air leakage of the unit.

    4. If possible, please try another brand of Material to check if our unit is working OK.
      4-1 Setting temperature is not High enough, please increase it. ( For example, ABS sets at 80℃, try to increase to 85℃, 90℃, and so on. and Ensure Material is not gathering together cause of High Temperature.)
      4-2 Drying time may be Not long enough, please increase drying time.
      4-3 Special Material, pellet is tiny and dense, we would suggest to have a special device to ensure material is dried completely and loading in orders.

    1. Check if Capacitors and Wiring are Burned.

    2. Check if Voltage of Factory is Normal and Stable. This is because Differences between 3 Phases of Voltage would also damage the unit.

  • Check if Wirings of Fan Motor, Heater, and inside control box are in good condition, not damaged or peeled, because this would lead Electric to steel cover to cause Electric leakage.

  • Set Temperature to do Automatic calculation or Adjust PID value manually.

  • You would see ① Indicator of SB is ON and ② Displayed FFF or - -

  • Positive and Negative Pole of Thermocouple are not connected correctly.

    Positive Pole connects RED wires.

    Negative Pole connects BLUE wires.

  • Check if Power cable is damaged or broken.

    Motor overload protector triggered.

    1. Check if Switch of Fan Motor is connected correctly.

    2. Check if lack phase of Motor. Lack phase of Motor would lead Motor is Not Running although switch of Fan Motor is ON. And Heating is ON to lead smoke.

    1. EGO protector triggered.

    2. OP protector triggered.

    3. Replace with New lamps.

Dehumidifying Dryer

    1. Check both of Dehumidifying dryer and Hopper dryer if they are suitable.

    2. Check both of DHM (DHC) and HD if they have air leakage.

    3. Check if the raw material contains oil or added.

    4. The function of desiccant and honey comb rotor is unstable for dehumidify or regeneration.

    5. Evaporator blocked, heating element fault or regeneration temperature is too low.

  • Check the spares of PU-TR, timer 60M x 12S, PU-NC, SENSOR, compressor air source…etc. Check it step by step to solve the failure.

  • It may EGO error or breakdown. Thermal bar poor assembling and poor contact causes overheat of temperature controller and SSR failure.

  • To replace temperature controller, auto computing and adjust PID.

  • Check cooling water, filter, evaporator and cooler.
